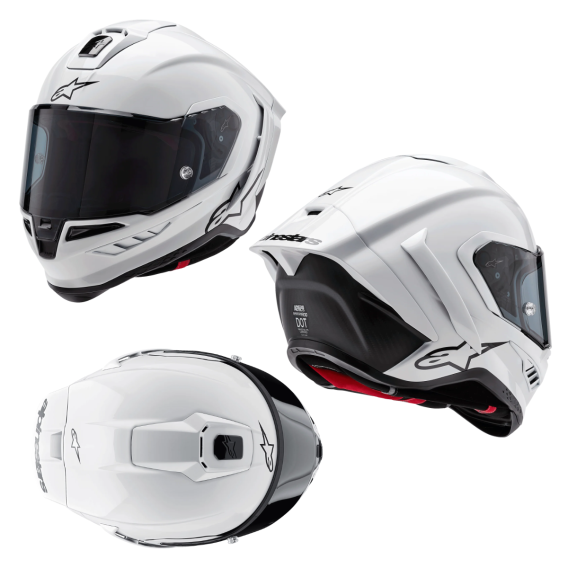

Supertech R10 Solid Helmet by Alpinestars

The result of over 10 years of intensive study, development, and testing, the goal of the Supertech family of helmets is to create the most advanced, protective, and performance-enhancing helmets possible for racers and riders worldwide. Following years of extensive research, development, and testing of the Supertech R10 road racing helmet by Alpinestars’ Helmet Product Development Department, together with MotoGP legend Andrea Dovizioso, and MotoGP riders Jorge Martin, and Jack Miller. With the S-R10, the focus of the design was to ensure the highest level of performance, especially when it comes to protection and a new level of safety. The S-R10 Helmet has been engineered to provide the perfect blend of excellent ventilation, unsurpassed comfort, and the lightest weight possible without compromising on any other front. Another crucial element unique to the S-R10’s design and development is the helmet’s advanced aerodynamics, with countless sessions in the wind tunnel aimed at reducing drag and providing optimal aerodynamic stability.

 Key Features

SUPERTECH R10 HELMET TECHNICAL FEATURES & OUTER SHELL

• CARBON SHELL CONSTRUCTION MULTI-LAYER COMPOSITE DISPERSES ENERGY IN IMPACTS Homologated to ECE 22.06, DOT, and FIM standards, the Supertech R10’s shell construction utilizes a highly advanced molding technology with a multi-composite combination featuring a 3K high-density carbon outer later, a uni-directional carbon composite layer, an aramid fiber layer, and a fiberglass one.
• The 3K high-density carbon outer layer provides excellent strength and efficiency of energy dissipation over the shell.
• The uni-directional (UD) carbon composite layer provides significantly greater radial strength around the shell, preventing compression, but allowing controlled deflection for reducing transmitted impact energy. The aramid fiber plus fiberglass layers provide critical penetration protection.
• This layered composite combination created by bonding everything together with an advanced epoxy resin already applied on the pre-preg fiber, perfectly controls the ideal proportion of resin versus fiber to maximize strength, mechanical performance, and lightweight. The combination of material layers provides improved energy management, as well as limited outer shell deflection, making the energy spread wider and better absorbed by the EPS liner.
• The S-R10’s unique shell construction results in extremely effective impact protection. With a fully equipped in-house helmet testing facility within Alpinestars’ state-of-the-art Research and Development center, the company has carried out an exhaustive impact research program. Our research and development efforts have shown the S-R10 returning linear and oblique impact performance results which far exceed current ECE 22.06 helmet regulation standard limits. For direct linear impacts, which is an impact at a 90-degree angle between the helmet and an object, the S-R10 surpasses the standard by an average magnitude of 37%. And for rotational acceleration and oblique impact performance, where impact energy comes from an angle other than a linear 90-degree, or right-angle straight impact, the S-R10 exceeds the standard by 65%.

INNER SHELL

• THE S-R10’S INNER SHELL IS MADE FROM EPS IN DIFFERENT DENSITIES
• The S-R10 has four inner shells just like the outer shell and is available in four anatomical sizes. The S-R10’s construction is optimized to ensure riders have the correct fit, which not only improves comfort and reduces overall weight, but most importantly, improves the effectiveness of the helmet in an impact. Underneath the helmet’s outer shell is an eight-piece multi-density EPS liner, with six specific densities that are strategically positioned in different zones to ensure excellent energy absorption from impact forces dissipated over the outer shell, as well as a close and comfortable fit. The EPS liner, just like the outer shell, has its own unique dimension for each helmet size, further tailoring the helmet’s performance and fit when it comes to protection and comfort.

LINEAR AND OBLIQUE FORCE MANAGEMENT

• The EPS inner surface is smooth, creating an optimized, low-friction area, for superior oblique impact management.
• When it comes to other types of helmet testing, the best helmets are those that provide protection against rotational, as well as oblique and linear impact forces.
• To help fight and mitigate those rotational, oblique, and linear impact forces, Alpinestars has designed a low-friction surface on the inner surface of the EPS liner. The inner surface is polished to be incredibly smooth, and then specially coated to reduce friction even further, allowing the comfort liner to move against the EPS. The result is increased rotational and oblique and linear force management, allowing the rider’s head to move independently inside of the helmet, or vice-versa, which can significantly reduce the amount of force transmitted to the head, neck, brain, and spine from an oblique impact, while simultaneously reducing the possibility of a concussion.
• To recap, specific rotational impact protection is provided by the combination of the internal shape and the specific coating of the EPS liner, coupled with the specially developed surface in the comfort liner. This patented technology reduces rotational acceleration transmitted to the rider’s head.
