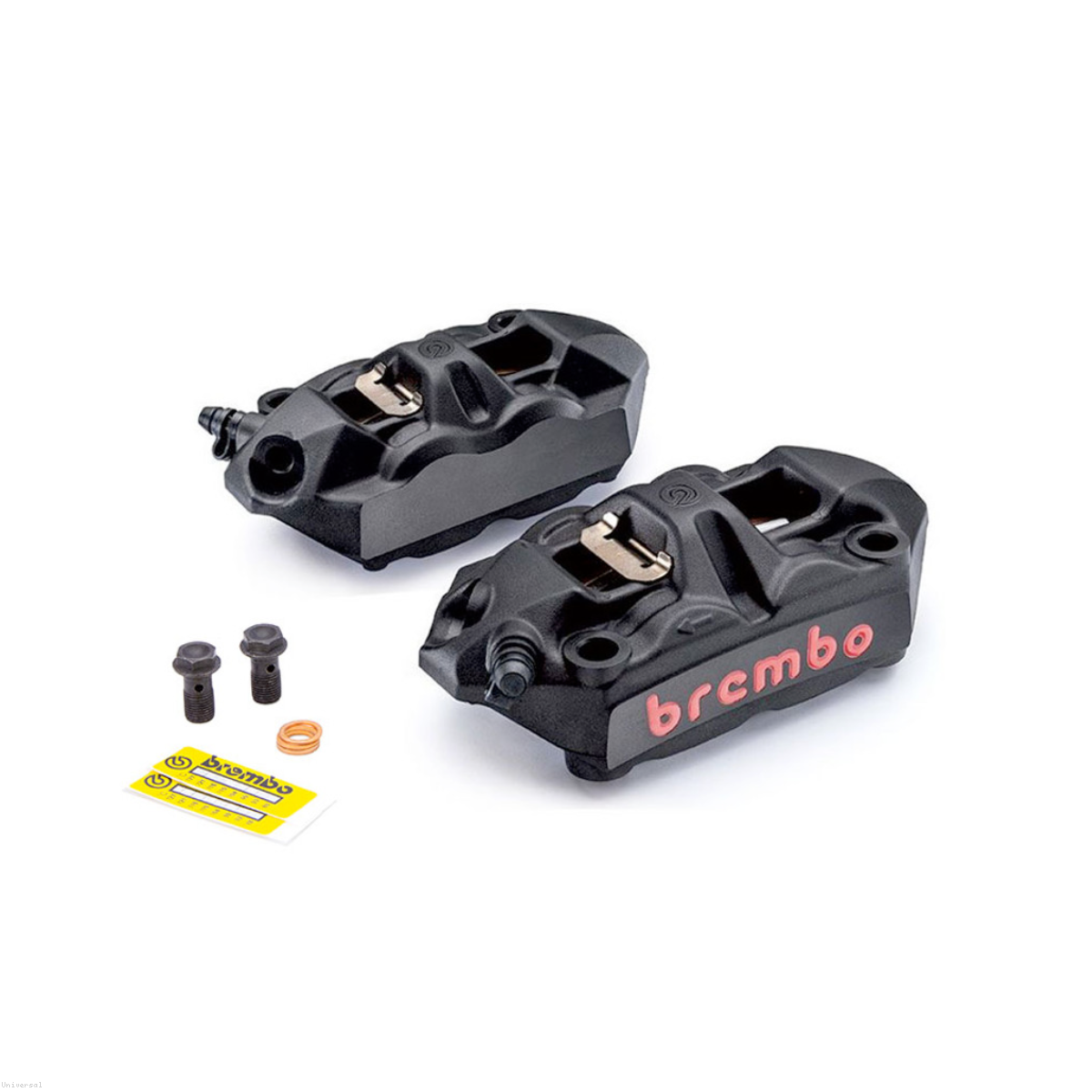

108mm Radial M4 Cast Monoblock Caliper Kit by Brembo Universal

This monoblock caliper, obtained from a single piece of cast aluminum, is made with the most advanced casting and machining technologies in order to obtain a solid caliper body which is ultra light and has excellent stiffness and precision operating values. The hydraulics were given particular attention, as was the shape of the caliper body, both of which were the focus of technical fine-tuning.

The caliper body, which houses four 34 mm diameter pistons, is characterised by significant stiffness values which are obtained thanks to the peculiarity of the triple bridge shape.

With these cast monoblock calipers Brembo makes the technology which has been successfully employed in MotoGP available to all enthusiasts. This is technology which allows the caliper body to be obtained from a single piece of cast aluminum, thereby guaranteeing optimum stiffness.

The surface finish is anodized in black color. The product is provided in a kit made up of two calipers and sintered brake pads which represent the absolute best quality available on the market today.

Position: Front

Bolt-Center: 108mm

Caliper Body: Monoblock

Piston DIA: 34mm

Piston Quantity: 4

Piston Material: Aluminum

Disc Height: 32-34mm

Caliper Material: Cast Aluminum

Finish: Black Anodized

Weight (w/o pads): 1.76 lb. (800g) - Per Caliper

Brake Pads: Included (HH sintered)

Offset: 22.5mm

Brake Fluid: DOT 4

Note: 2 Caliper Kit

Brembo P/N: 220.A397.50
